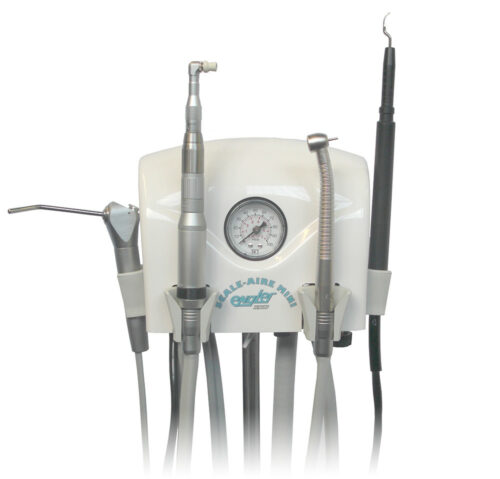

Scale-Aire High Speed Dental Air Drive

Engler Engineering Corporation is pleased to introduce the Scale-Aire High Speed Veterinary Dental Air Unit. We have incorporated state of the art microchip circuitry into a new highly efficient all-in-one unit. You can easily alternate from scaling to polishing to drilling. The ultrasonic scaler maintains optimum frequency when pressure is applied to the tip by constantly scanning and compensating, using digital micro technology, which eliminates even partial loss of power. You can perform curettage, deep scaling of heavy calculus, remove stains and conclude the prophylaxis treatment by polishing the teeth using the same unit.

Our 25K Series Ultrasonic inserts are FDA approved and manufactured to the highest standards. The two inserts provided with each unit are used for heavy or general scaling. At the touch of the foot control, the chevron shaped ultrasonic insert surges power to the tip instantly without stalling. The scaler’s delayed cavitation feature disperses the excess water into a fine mist even after the foot control is released thereby eliminating annoying “after drip”.  Recommended sterilization for the ultrasonic inserts are autoclave or chemiclave.

The high speed handpiece is used for cutting, drilling, sectioning, and many other procedures. The low speed is used for polishing to complete the dental prophylaxis.

Only Engler Engineering Corp. offers a lifetime loaner service. The control module is easy to remove without tools, for servicing and shipping. Telescoping H-Frame for easy storage

The SCALE-AIRE High Speed Veterinary Dental Air Unit comes equipped with:

25K ULTRASONIC SCALER

• 25 KHz scaler handpiece
• 2, 25 KHz ultrasonic inserts
• Insert Anti Pop-Out Feature*
• Same foot switch controls for all handpieces
• 100-240 VAC Universal Input Switching Power Supply.

AIR HANDPIECES

• 360,000-RPM variable speed handpiece
• Complete Prophy starter kit
• Up to 20,000 RPM low speed handpiece
• Prophy angle for snap on rubber Cups
• Instruction Manual  (available online)

     OPTIONAL FEATURES

Fiber optic high speed handpiece, Piezo scaler handpiece, Wall mount, Wall mount with retractable arm

Optional polisher Accessories: Diamond and Carbide burs (1.6 mm), Diamond cutting disc with (2.35 mm)

ON DEMAND COMPRESSOR

• 100% Oil less and Maintenance free operation
• HP 3/4
• Pressure switch with on / off switch
• Type AC single phase
• Voltage 115V-60Hz
• Free air delivery 3.68 SCFM
• Noise Level 55db

Fitted with

On / Off switch, Air line Q / D, ASME pressure safety valve, 2 liter water bottle reservoir

TECHNICAL DATA

• Control box dimensions:  14” X 11.5” X 4”
• Assembled dimensions:   17” X  19” X  (27” min 39” max)
• Shipping Wt 75 lbs
• Net Wt:  70 lbs
• Shipping Box Dimensions:  24” X 24” X 24”

*Anti Pop-out feature prevents the ultrasonic insert from accidental pop out due to excessive water pressure.
