OPTICLUX HANDHELD

OPTICLUX HANDHELD

The OPTICLUX HANDHELD is designed to be a valuable diagnostic tool for medical professionals who require precision magnification, high-quality illumination, and the flexibility of integrated Wood’s light in a portable format.

Designed for dermatology, veterinary medicine, and clinical applications, this handheld magnifier combines a 3.5-diopter acrylic glass lens with bright, homogeneous LED illumination to provide a clear and detailed view of the examination area. Its 6500K daylight-white light and exceptional Ra = 95 color rendering support accurate visualization and reliable diagnostic assessment.

The integrated Wood’s light, with a maximum value at 365 nm, adds another level of versatility for specialized examinations. Practitioners can use the device as both a daylight-quality illuminated magnifier and a diagnostic UV light, making it a practical all-in-one solution for a variety of examination tasks.

With continuously dimmable illumination, easy-to-access controls, flexible USB charging, and more than three hours of battery life, the OPTICLUX HANDHELD is built for convenient everyday use. Its ergonomic design accommodates both right- and left-handed users, while the included high-quality felt case helps protect the device during storage and transport.

Key Features & Specifications

3.5-Diopter Magnification
The acrylic glass lens provides 3.5 diopters of magnification, helping practitioners examine fine details with greater clarity.

6500K Daylight-White Illumination
The daylight-white 6500K color temperature provides bright, natural-looking illumination for detailed examinations.

Excellent Color Rendering — Ra = 95
With a color rendering value of Ra = 95, the OPTICLUX HANDHELD provides highly accurate color representation for precise visual assessment.

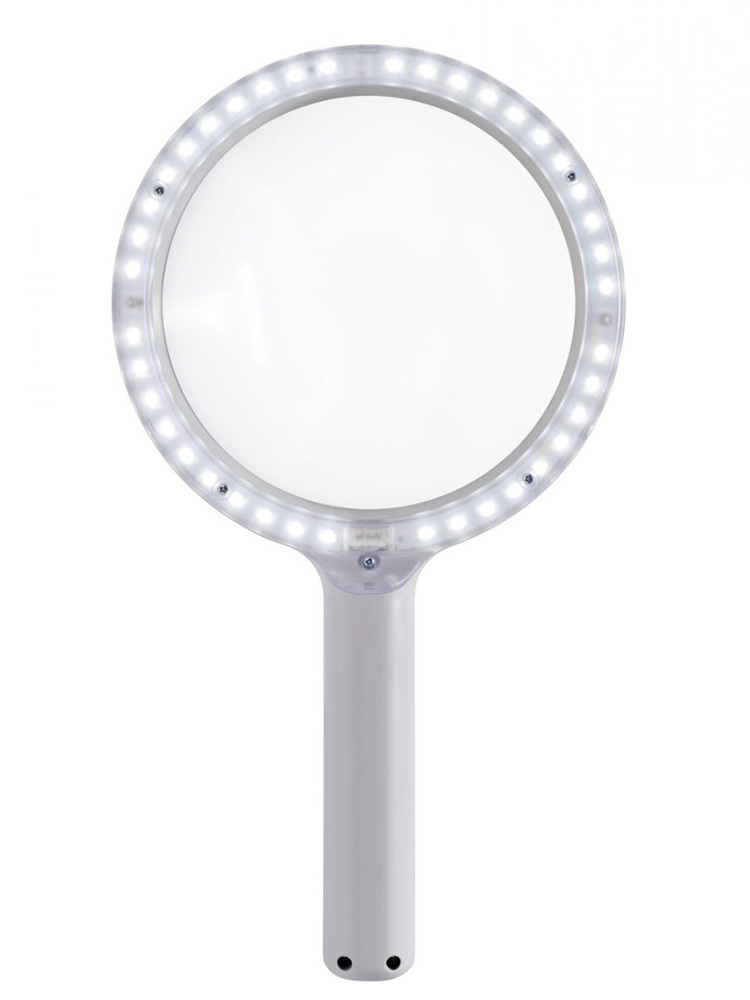

Bright, Homogeneous Light Field
The device delivers 8,000 lux at 0.15 meters, providing a bright and homogeneous field of illumination for close-range examinations.

Integrated Wood’s Light
The built-in Wood’s light has a maximum value at 365 nm, providing specialized UV illumination for dermatological, veterinary, and other diagnostic applications.

Continuous Dimming
Stepless dimming allows users to continuously adjust the illumination level to suit different examination conditions and visual preferences.

Portable and Battery Powered
With more than three hours of battery life, the OPTICLUX HANDHELD provides dependable portable operation without requiring constant access to a power outlet.

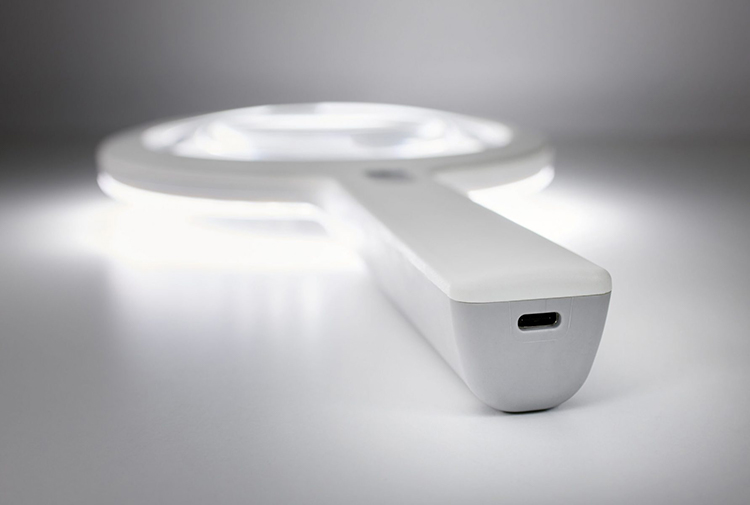

Flexible USB Charging
The device can be conveniently charged through a USB interface, making charging simple and adaptable to different work environments.

Ergonomic for Right- and Left-Handed Use
The ergonomic design is optimized for comfortable handling by both right- and left-handed users.

Easy-to-Access Controls
Intuitive controls are positioned for convenient operation, allowing users to adjust lighting settings quickly during examinations.

Maintenance-Free Design
Designed for dependable everyday use, the OPTICLUX HANDHELD features a maintenance-free construction that helps simplify ownership.

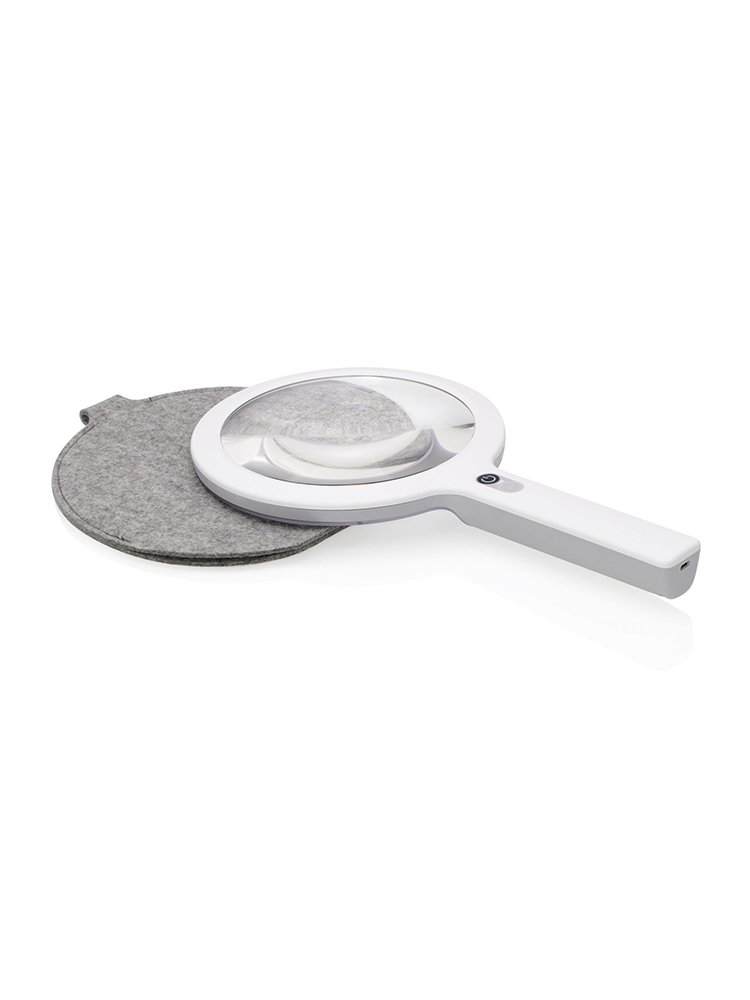

Protective Felt Case
A high-quality felt case provides additional protection during storage and transport.

Specifications Overview

• Product: OPTICLUX HANDHELD
• Type: Portable medical magnifier and diagnostic light
• Color Temperature: 6500K daylight white
• Magnification: 3.5 diopters
• Lens: Acrylic glass
• Color Rendering: Ra = 95
• Illumination: 8,000 lux at 0.15 meters*
• Light Field: Bright and homogeneous
• Dimming: Continuous / stepless
• Wood’s Light: Integrated
• Wood’s Light Wavelength: Maximum value at 365 nm
• Charging: USB interface
• Battery Life: More than 3 hours
• Maintenance: Maintenance-free
• Ergonomics: Suitable for right- and left-handed users
• Storage: High-quality protective felt case included
• Medical Device Standard: EN 60601-1
• Warranty: 5 years on all electronic components

*Illumination tolerance: -10% / +20%.

Condition & Warranty

The OPTICLUX HANDHELD is designed as a dependable, maintenance-free diagnostic tool for professional medical and veterinary environments. Its portable construction, integrated battery, USB charging capability, and durable protective case make it well suited for routine use and transport between examination areas.

The device is backed by a 5-year warranty on all electronic components, providing additional confidence in its long-term performance and reliability.

Why Choose the OPTICLUX HANDHELD?

• Portable diagnostic versatility — Combines magnification, daylight-quality illumination, and Wood’s light in one handheld device.
• Excellent visual accuracy — Ra = 95 color rendering supports accurate observation and assessment.
• Integrated Wood’s light — 365 nm UV illumination provides added flexibility for specialized examinations.
• Precision magnification — A 3.5-diopter lens helps reveal fine details during close-range examinations.
• Bright, uniform illumination — Delivers 8,000 lux at 0.15 meters for a clear and homogeneous light field.
• Complete brightness control — Stepless dimming allows illumination to be adjusted to the task.
• Cordless convenience — More than three hours of battery life supports flexible, portable use.
• Easy USB charging — Convenient charging through a standard USB interface.
• Comfortable handling — Ergonomic design supports both right- and left-handed users.
• Low-maintenance operation — Maintenance-free construction helps simplify everyday use.
• Protected for transport — Includes a high-quality felt case for storage and portability.
• Medical-grade design — Tested according to EN 60601-1.
• Long-term confidence — Includes a 5-year warranty on all electronic components.

The OPTICLUX HANDHELD delivers the portability, precision, and diagnostic versatility professionals need for detailed examinations.

With 3.5-diopter magnification, 6500K daylight-quality illumination, Ra = 95 color rendering, 8,000 lux output, continuously dimmable lighting, integrated 365 nm Wood’s light, and more than three hours of battery life, it provides a practical all-in-one solution for dermatology, veterinary medicine, and clinical applications.

Its ergonomic design, maintenance-free operation, USB charging, and protective felt case make it easy to use wherever detailed visual examination is needed.

Interested in the OPTICLUX HANDHELD? Contact us today for pricing, availability, and additional product details.
